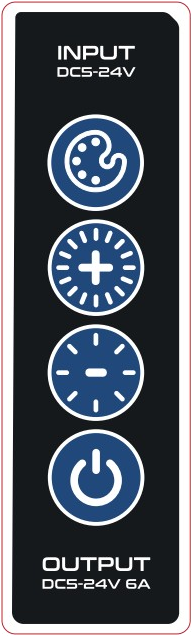

change color – short press
set default color – long press
BRIGHTNESS CHANGE – 8 levels
10%, 30%, 40%, 50%, 60%, 70%, 90%, 100%
switching on – short press
switching off – holding for 3 s
Color temperature is changed in steps from warm to cool and back.
Pressing color switch for 3 s will result in setting
the defeauld color temperature.
Setting color different than default will result in dimming
the lamp down to aproximately 80 %
for the most warm and most cool setting.
Lamp output power is 100 % for the defeault color setting.
Input voltage: 12-24 V
Absolute maximum current rating: 4 A/ channel
Working temperature 0-30 C
Static power consumption: < 1W
Maximum output power: 96 W
